Lot 5:

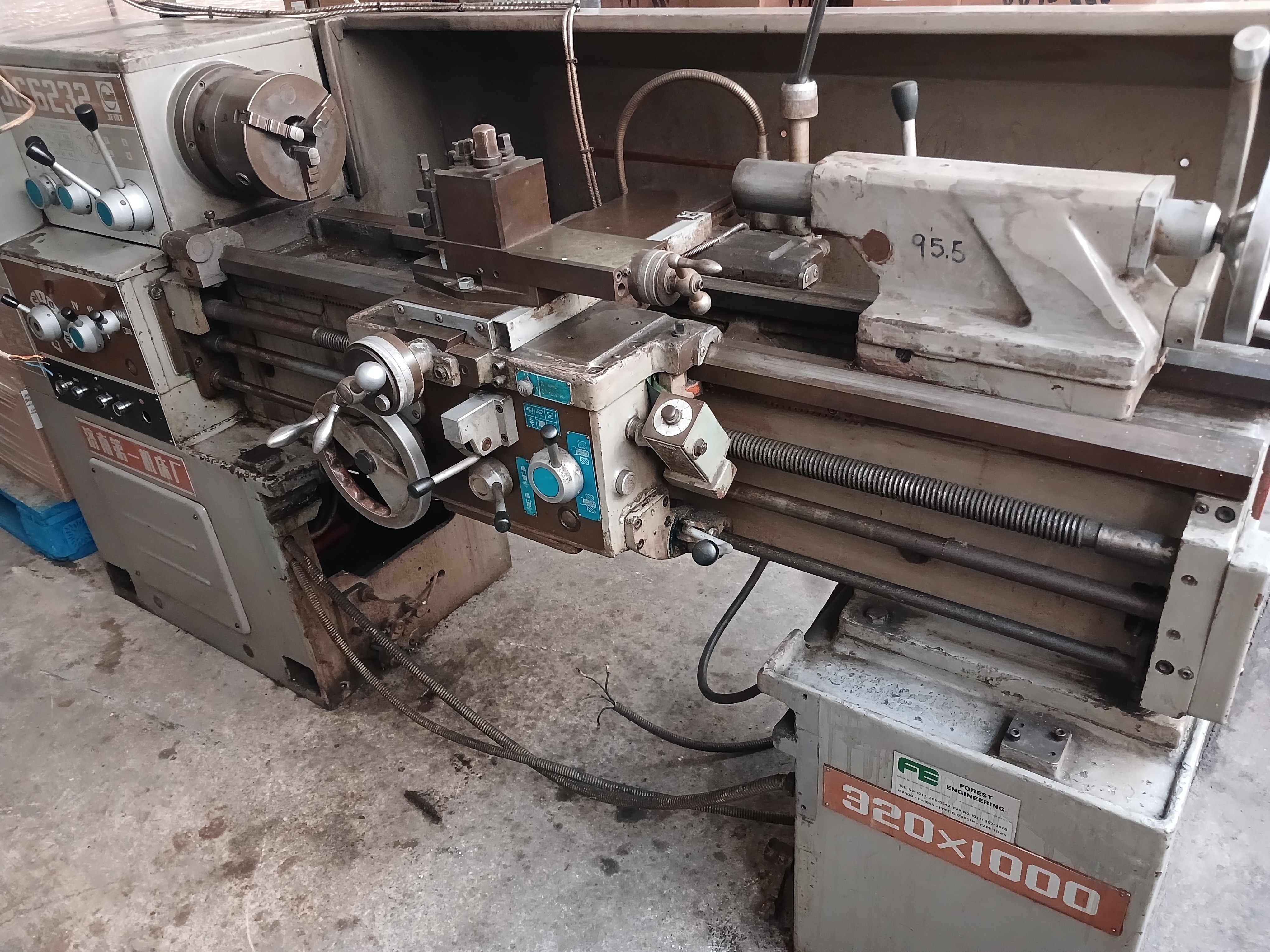

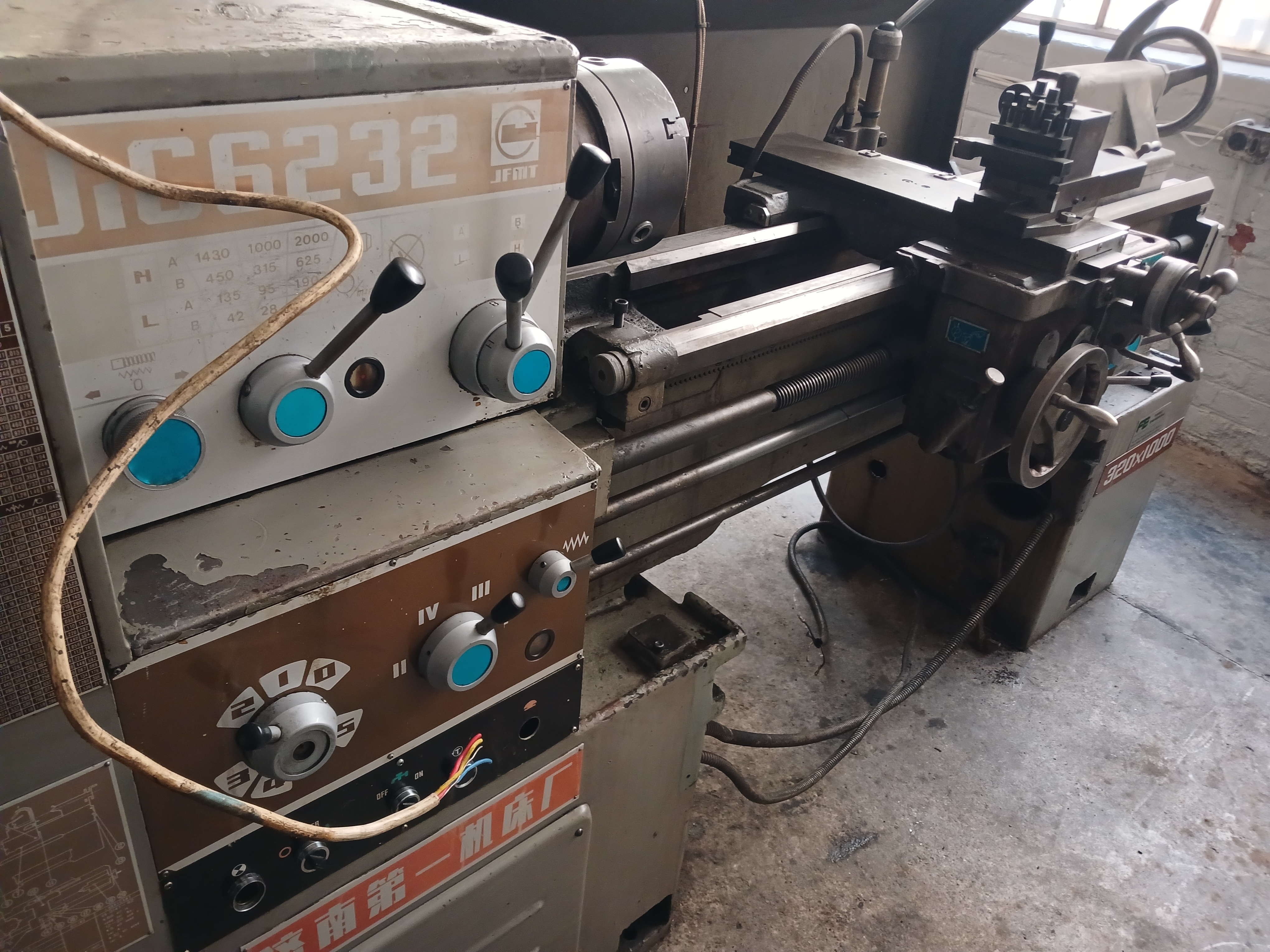

JC6232 Lathe
Robust, general-purpose metalworking machine designed for precision turning tasks in both industrial and workshop environments.
Key Specifications
• Swing over bed: 320 mm
• Swing over cross slide: 150 mm
• Distance between centers: 750 mm (other lengths available up to 3000 mm)
• Spindle bore: 52 mm (optional upgrade to 80 mm)
• Spindle taper: MT6 (optional Metric 1:20)
• Spindle speed range: 40–1400 RPM (9-speed steps)
• Cross slide travel: 160 mm
• Top slide travel: 95 mm
• Tool post capacity: 20 x 20 mm
• Threading capabilities:
o Metric threads: 0.25–14 mm (19 kinds)
o Inch threads: 28 kinds
• Feed range:
o Longitudinal: 0.0832–4.6569 mm/rev
o Cross: 0.048–2.688 mm/rev
• Motor power: 5 HP, 380 V, 50 Hz, 3-phase
Please see images as they form part of the description. (Collection and Viewing by appointment in Kew)
Used machine for sale as is.
